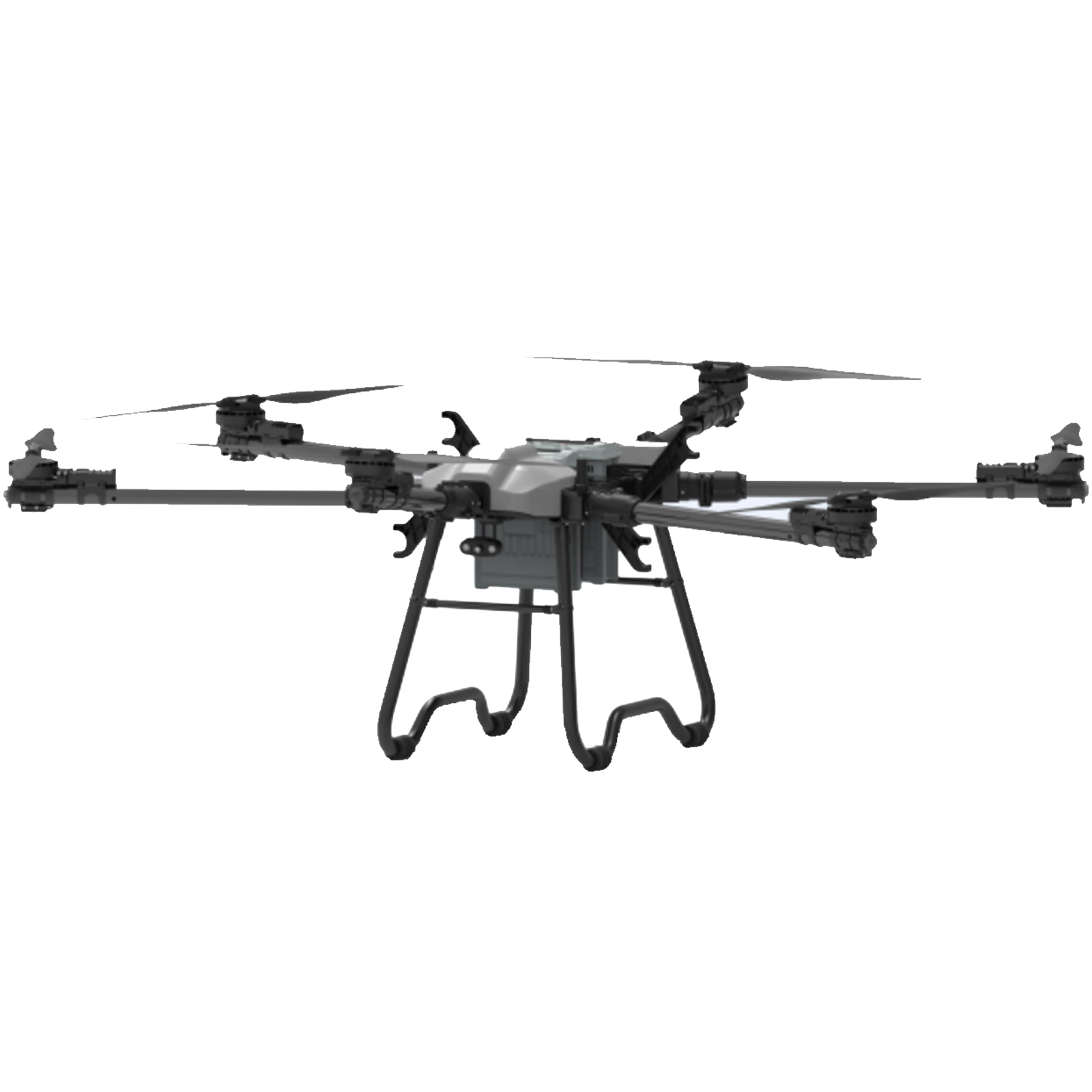

Dual electric version of the industry application UAV

New structure, modular fuselage design, super compatibility, equipped with quick dismountable double batteries, the use of front and rear folding six rotor, can carry obstacle avoidance radar and ground defense radar expansion, front FPV first view to provide clear image feedback, equipped with 43 inch propeller power, lightweight, small size, large load, Easy to carry operation. The maximum effective load is 50kg, which is suitable for the transportation of materials, saplings, high-altitude casting equipment and other industries

Product wheelbase: 2410mm
Product size: 2087*2272*827mm (unfolded) 1287*827*984mm (folded)
Product weight: 14kg (rack weight)
31kg (maximum configuration, excluding battery) 54kg (including double battery weight)
104kg (full load 50, take-off weight)
Arm size: 47*50mm
Load capacity: 20~50kg

Fixed mode: plug-in dual electric version
Suitable model: RY-50 dual-electric industrial application flight platform
Flight control: RY self-developed
Remote controller: H12/H16/MK32
Power system: A11 plus (motor)
150A (electrically regulated)
43 inch (propeller)
Battery: 14S 28000mAh*2

Working time: 45 minutes (no load, takeoff weight 54kg) 12~30 minutes (full load 50~20kg)
