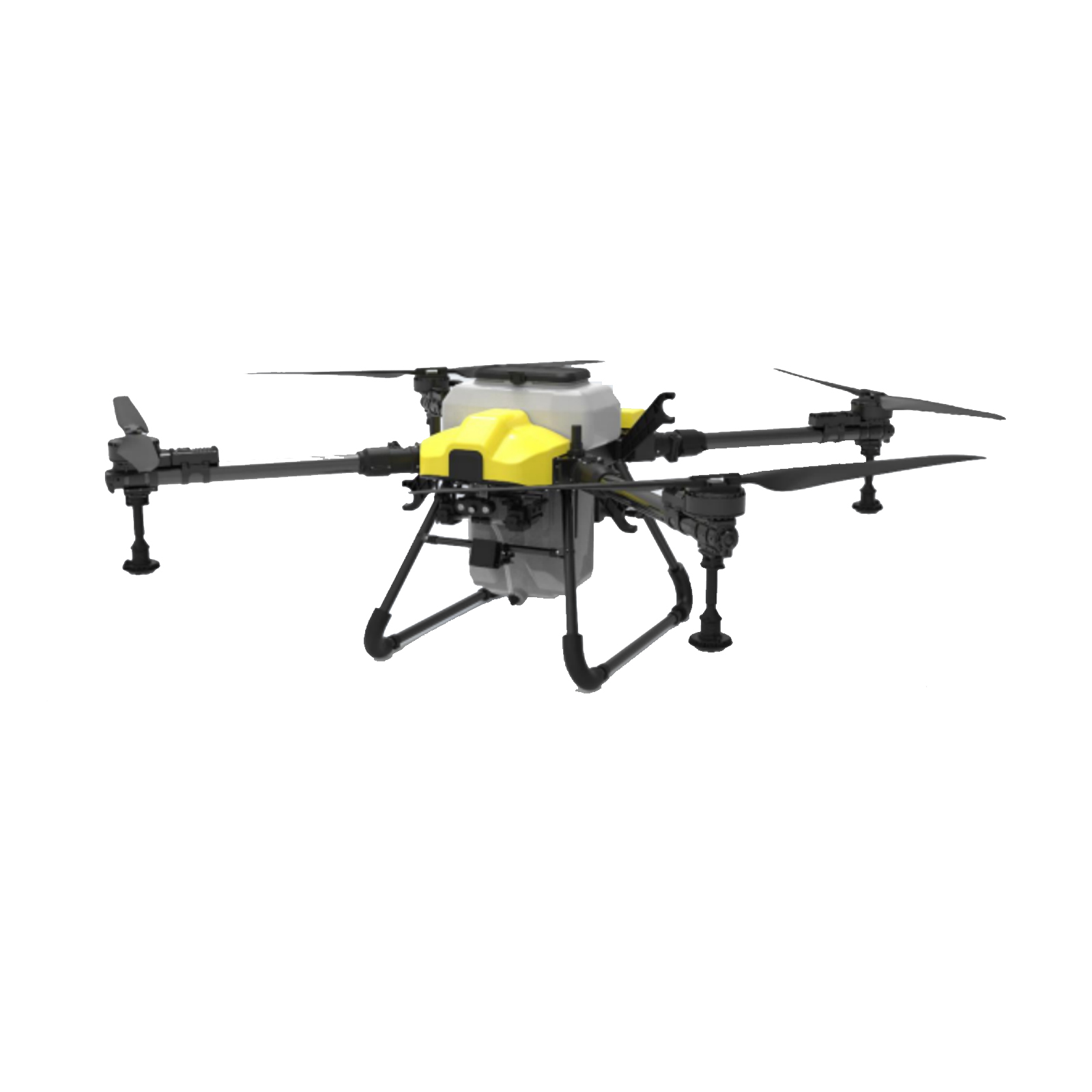

New structure design, battery tank equipped with fly-off battery, equipped with fast plug-in water tank design, front and rear folding quadrotor, front double water pump shunt quick disassembly module, equipped with obstacle avoidance radar and ground defense radar, front FPV first view, strong power, light body, small size, large load, easy to carry. The maximum effective capacity of the water tank is 10L.

Product wheelbase: 1605mm
Product size: 1252*1252*674mm (unfolded) 730*790*750mm (folded)
Product weight: 1.04kg (10L water tank weight)
7kg (rack weight)
15kg (maximum configuration, including battery) 25kg (full load, take-off weight)
Arm size: 37*40mm
Medicine box volume: 10L
Spray width: 3~5 meters

Operating efficiency: 50 mu/hour

Flight control: RY self-developed
Remote controller: H12/T12/MK15
Power system: A9 110kv (motor)
150A (electrically regulated)
34 inch (propeller)
Spray system: 5L water pump (voltage: DC44-60.9V) pressure nozzle/centrifugal nozzle kit
Battery: 12S 16000/22000mAh
Hovering time: 20 minutes (idle hovering 12S 22000mAh)

8 minutes (full load hover 12S 22000mAh)
